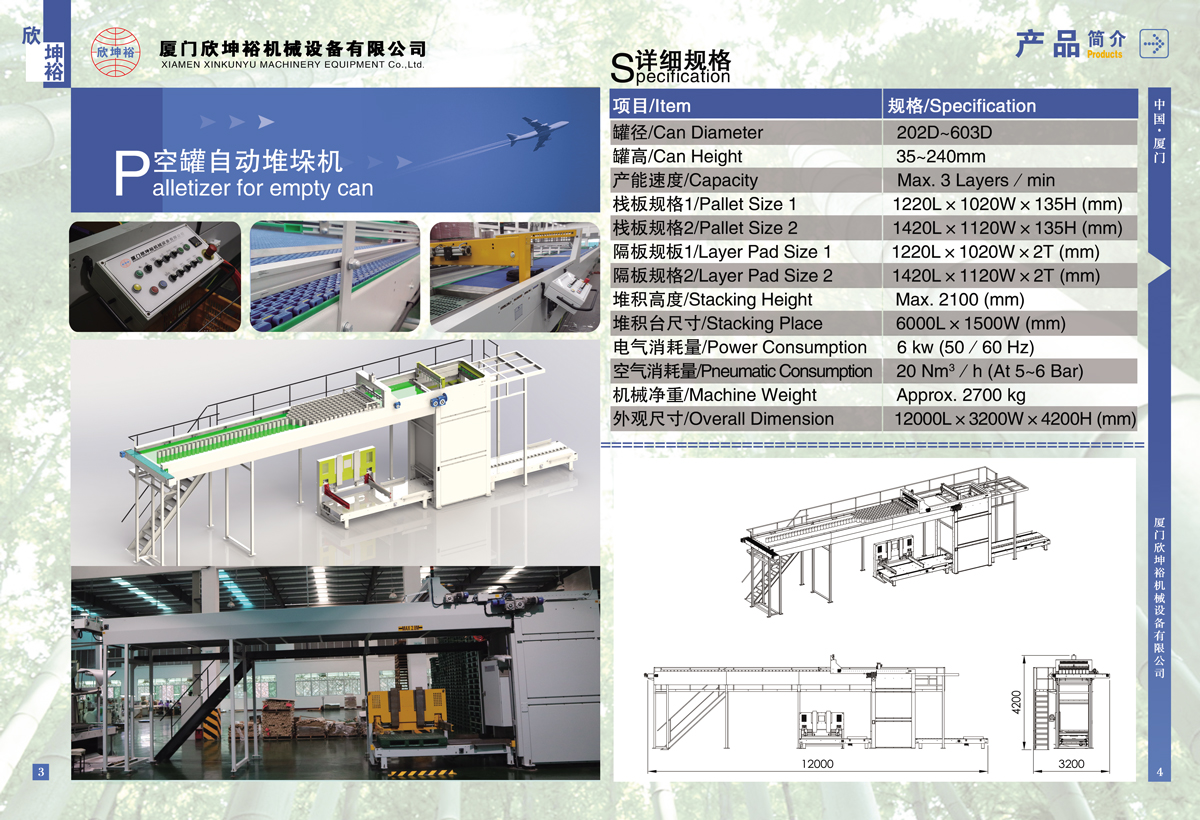

產品規格詳細規格/pecification
項目/Item 規格/Specification
罐徑/Can Diameter 202D~603D
罐高/Can Height 35~240mm
產能速度/Capacity Max. 3 Layers／min
棧板規格1/Pallet Size 1 1220L×1020W×135H (mm)
棧板規格2/Pallet Size 2 1420L×1120W×135H (mm)
隔板規板1/Layer Pad Size 1 1220L×1020W×2T (mm)
隔板規格2/Layer Pad Size 2 1420L×1120W×2T (mm)
堆積高度/Stacking Height Max. 2100 (mm)
堆積臺尺寸/Stacking Place 6000L×1500W (mm)
電氣消耗量/Power Consumption 6 kw (50／60 Hz)
空氣消耗量/Pneumatic Consumption 20 Nm3／h (At 5~6 Bar)
機械凈重/Machine Weight Approx. 2700 kg
外觀尺寸/Overall Dimension 12000L×3200W×4200H (mm)
