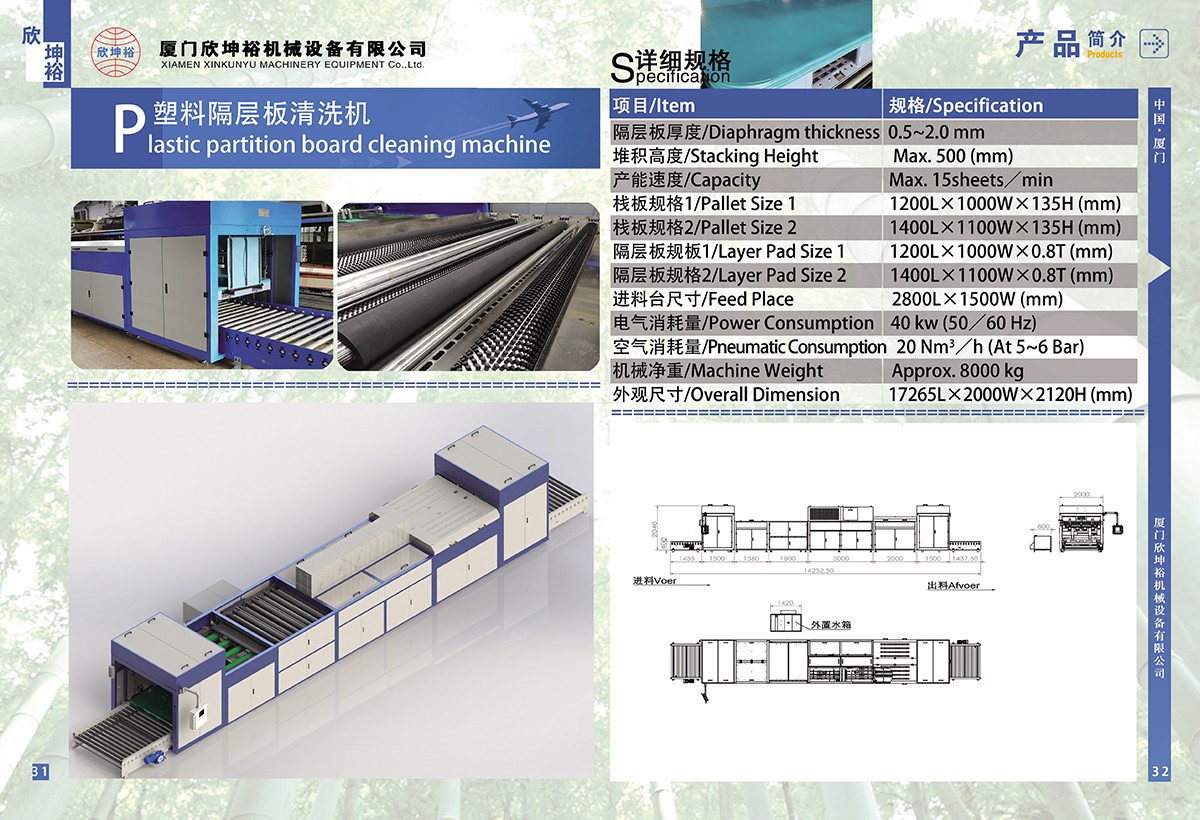

產品規格項目/Item 規格/Specification 隔層板厚度/Diaphragm thickness 0.5~2.0 mm
堆積高度/Stacking Height Max. 500 (mm)
產能速度/Capacity Max. 15sheets／min
棧板規格1/Pallet Size 1 1200L×1000W×135H (mm)
棧板規格2/Pallet Size 2 1400L×1100W×135H (mm)
隔層板規板1/Layer Pad Size 1 1200L×1000W×0.8T (mm)
隔層板規格2/Layer Pad Size 2 1400L×1100W×0.8T (mm)
進料臺尺寸/Feed Place 2800L×1500W (mm)
電氣消耗量/Power Consumption 40 kw (50／60 Hz)
空氣消耗量/Pneumatic Consumption 20 Nm3／h (At 5~6 Bar)
機械凈重/Machine Weight Approx. 8000 kg
外觀尺寸/Overall Dimension 17265L×2000W×2120H (mm)
